Precision, Quality, and Reliability in PCB Assembly
End-to-End PCB Assembly Services for Industrial & IoT Applications
What We Offer
At Culine, we specialize in delivering high-quality PCB Assembly (PCBA) services that bring your electronic designs to life. Our PCBA solutions are tailored to meet the diverse needs of industries, from industrial machinery to IoT devices, ensuring that each component is manufactured with precision and care. With state-of-the-art facilities, cutting-edge technology, and a commitment to quality, Culine’s PCBA services are built to handle everything from prototypes to full-scale production runs.

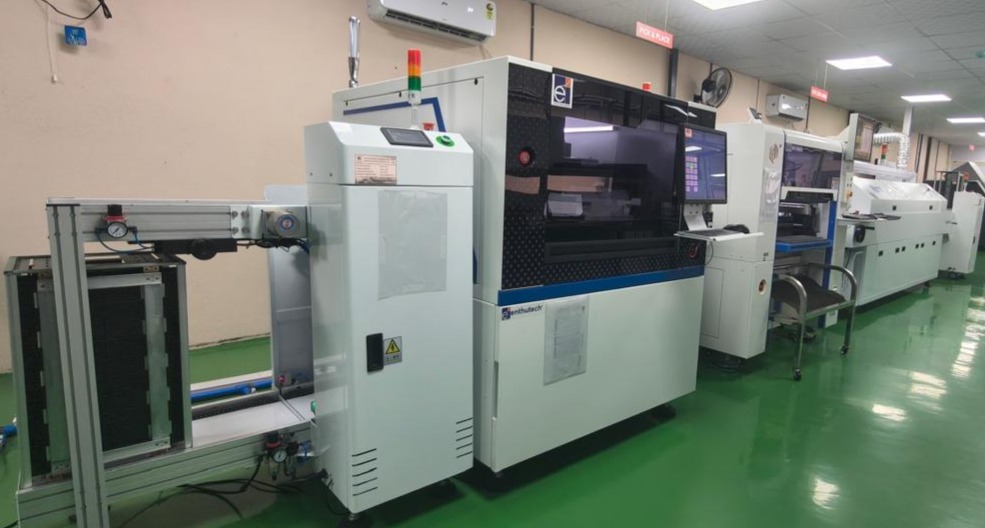

SMT PROCESSING LINE

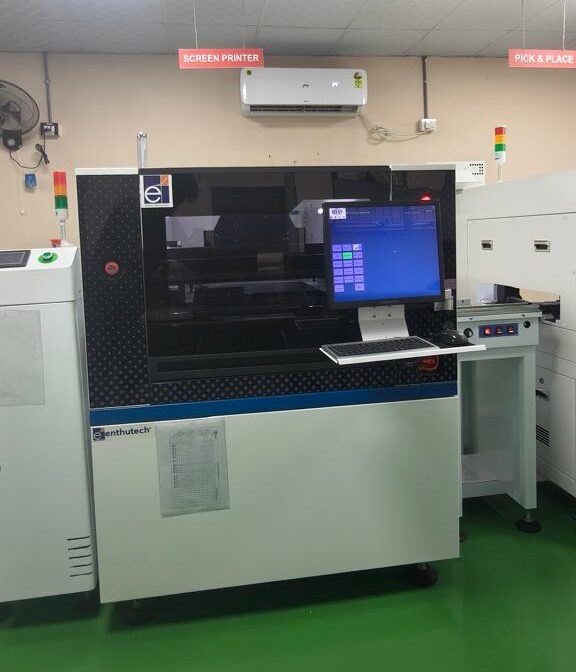

SCREEN PRINTER
Model No : BV X5
PCB Size : 50mm x 50mm up to 450mm x 350mm.
PCB Thickness : 0.4mm to 6mm.
Printing Accuracy : $\pm$20.0
Cycle Time : Less than 7 seconds .
Vision System : Up/down camera separation with a 2D inspection system for offset and solder paste issues.
Squeegee System : Independent, direct-coupled motor-driven scrapers (two heads) with programmable pressure.
PICK AND PLACE

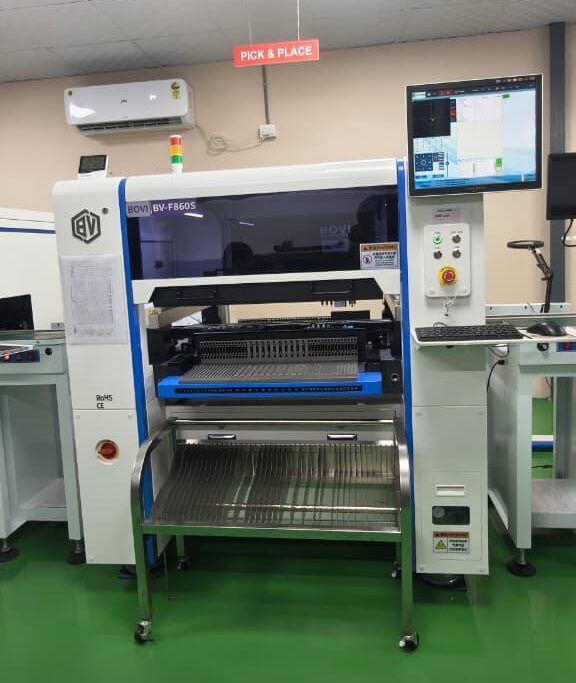

Item : 8 Heads Pick and Place Machine
Model No : BV – F860S
Inspection Method : High-speed 2D or 3D AOI (depending on configuration) utilizing full-color cameras.
Maximum PCB Size : 500 x 450 mm.
Minimum PCB Size : 50 x 50 mm.
PCB Thickness : 0.6 – 5 mm.
Resolution : 10 μm or better, capable of identifying 01005 components.
Defect Detection : Catastrophic failures (missing components) and quality defects (fillet size/shape, component skew, soldering).
Feeder Capacity : Accommodates up to 120 feeders.
REFLOW OVEN

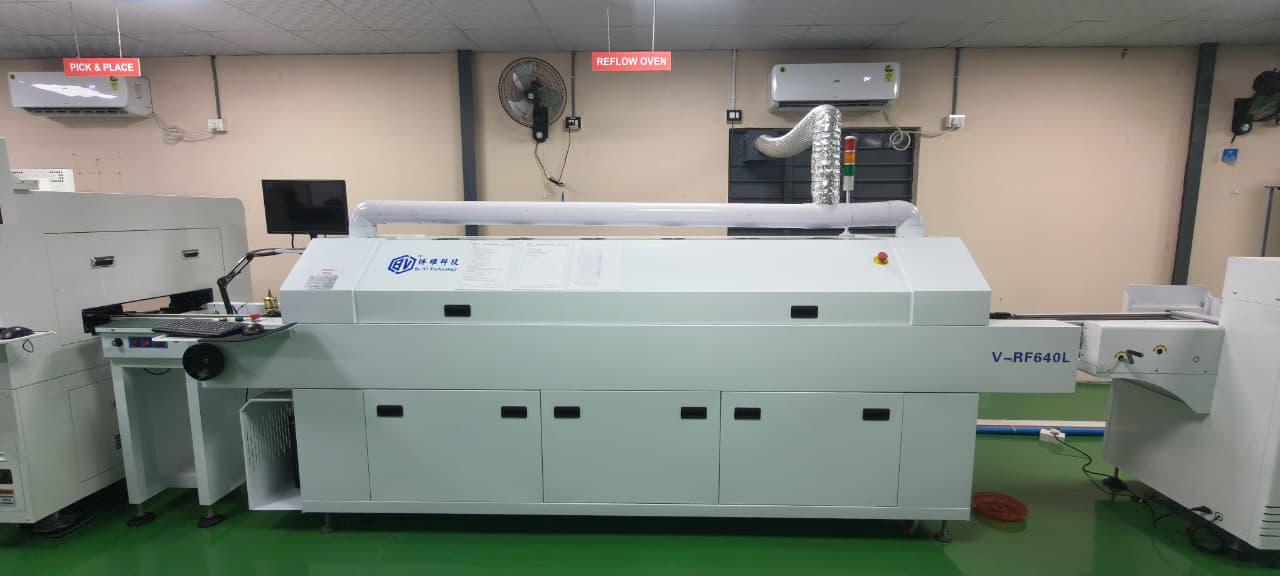

Item : Up 6 / Down 6 heating Zones Reflow Oven
Model No : BV – RF640L
Heating Zones : 6 Zone (3 top / 3 bottom)
Heating Method : Hot Air Convection
Max PCB Width : 280mm or 300mm
Max Temperature : 300°C
Functionality : Lead-free soldering.
X-RAY MACHINE

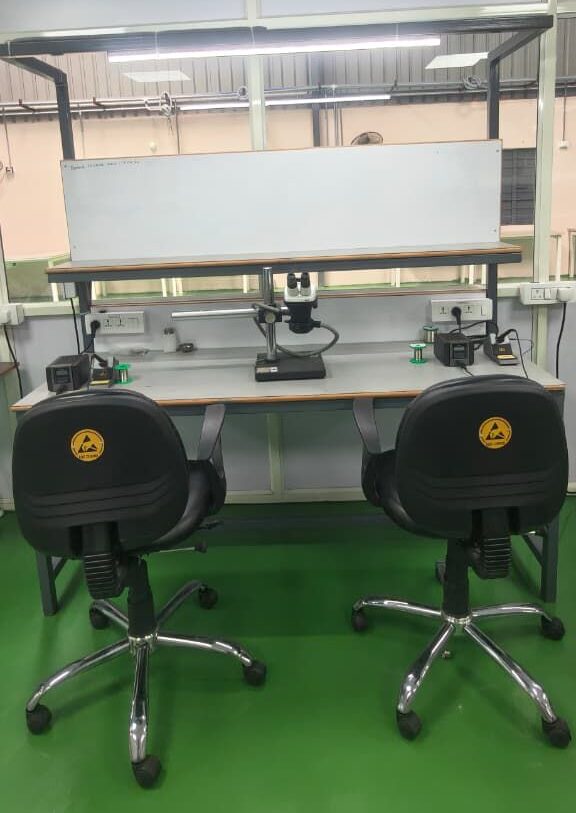

REWORK STATION
Types of Rework Stations :
- Hot Air Rework Station
- Infrared (IR) Rework Station
- BGA Rework System
Industries We Serve with PCBA
Our PCBA services are trusted by clients across a range of sectors, including:
